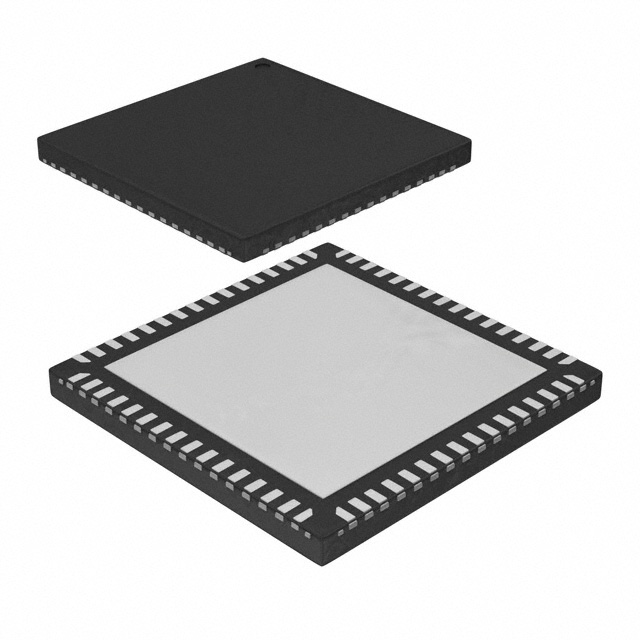

AT90USB1286-MU-7288819

IC MCU 8BIT 128KB FLASH 64QFN

1 review(s) | Add your review

Availability: In stock

Manufacturer: Microchip Technology

SKU: AT90USB1286-MU-7288819

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AT90USB1286-MU-7288819 Description

Number of I/O	48
Core Processor	AVR
EEPROM Size	4K x 8
Data Converters	A/D 8x10b
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 85°C (TA)
Supplier Device Package	64-QFN (9x9)
Core Size	8-Bit
Program Memory Size	128KB (128K x 8)
Package	Tray
Oscillator Type	Internal
Voltage - Supply (Vcc/Vdd)	2.7V ~ 5.5V
Program Memory Type	FLASH
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Connectivity	EBI/EMI, I2C, SPI, UART/USART, USB
RoHS	RoHS
Speed	16MHz
RAM Size	8K x 8
