MMBZ18VAL,215

TVS DIODE 14.5VWM 25VC TO236AB

1 review(s) | Add your review

Availability: In stock

Manufacturer: Nexperia USA Inc.

SKU: MMBZ18VAL,215

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

MMBZ18VAL,215 Description

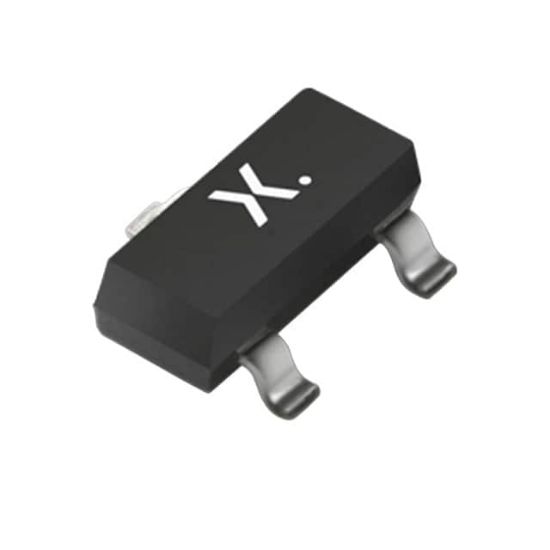

Nexperia SOT23 Surface-Mounted Package Products

Nexperia SOT23 Surface-Mounted Package Products are contained in a plastic, surface-mounted, three terminals, 1.9mm pitch, 2.9mm x 1.3mm x 1mm package. This mainstay package in semiconductors was introduced in 1969 and quickly became an industry standard. The SOT23 encapsulates an extensive range of diodes, bipolar transistors, MOSFETs, and ESD protection devices within Nexperia's portfolio. The SOT23 package has been a constant for the last 50 years, leading to several offspring, such as the SOT223 and SOT323.

Operating Temperature	-55°C ~ 150°C (TA)
Voltage - Reverse Standoff (Typ)	14.5V (Max)
Power - Peak Pulse	40W
Voltage - Clamping (Max) @ Ipp	25V
Mounting Type	Surface Mount
Supplier Device Package	TO-236AB
Capacitance @ Frequency	70pF @ 1MHz
Voltage - Breakdown (Min)	17.1V
Current - Peak Pulse (10/1000μs)	1.6A
Unidirectional Channels	2
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Line Protection	No
Type	Zener
Bidirectional Channels	1
Applications	Automotive
RoHS	RoHS
